#include "configuration.h"

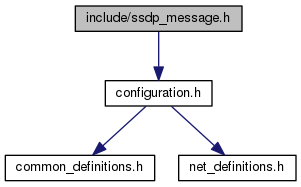

Include dependency graph for ssdp_message.h:

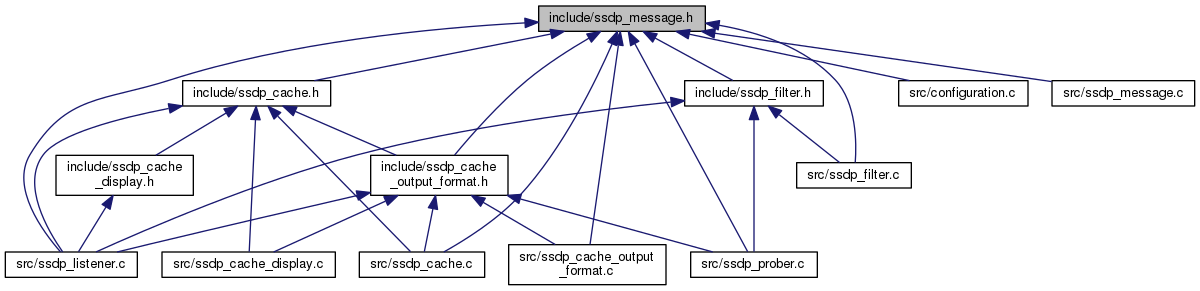

This graph shows which files directly or indirectly include this file:

Classes
struct	ssdp_header_struct

struct	ssdp_custom_field_struct

struct	ssdp_message_struct

Macros
#define	DAEMON_PORT 43210

#define	XML_BUFFER_SIZE 2048

#define	DEVICE_INFO_SIZE 16384

#define	MULTICAST_TIMEOUT 2

#define	SSDP_HEADER_HOST_STR "host"

#define	SSDP_HEADER_ST_STR "st"

#define	SSDP_HEADER_MAN_STR "man"

#define	SSDP_HEADER_MX_STR "mx"

#define	SSDP_HEADER_CACHE_STR "cache"

#define	SSDP_HEADER_LOCATION_STR "location"

#define	SSDP_HEADER_OPT_STR "opt"

#define	SSDP_HEADER_01NLS_STR "01-nls"

#define	SSDP_HEADER_NT_STR "nt"

#define	SSDP_HEADER_NTS_STR "nts"

#define	SSDP_HEADER_SERVER_STR "server"

#define	SSDP_HEADER_XUSERAGENT_STR "x-user-agent"

#define	SSDP_HEADER_USN_STR "usn"

#define	SSDP_HEADER_UNKNOWN_STR "unknown"

#define	SSDP_HEADER_HOST 1

#define	SSDP_HEADER_ST 2

#define	SSDP_HEADER_MAN 3

#define	SSDP_HEADER_MX 4

#define	SSDP_HEADER_CACHE 5

#define	SSDP_HEADER_LOCATION 6

#define	SSDP_HEADER_OPT 7

#define	SSDP_HEADER_01NLS 8

#define	SSDP_HEADER_NT 9

#define	SSDP_HEADER_NTS 10

#define	SSDP_HEADER_SERVER 11

#define	SSDP_HEADER_XUSERAGENT 12

#define	SSDP_HEADER_USN 13

#define	SSDP_HEADER_UNKNOWN 0

Typedefs
typedef struct ssdp_header_struct	ssdp_header_s

typedef struct ssdp_custom_field_struct	ssdp_custom_field_s

typedef struct ssdp_message_struct	ssdp_message_s

Functions
ssdp_custom_field_s *	get_custom_field (const ssdp_message_s ssdp_message, const char custom_field)

int	fetch_custom_fields (configuration_s conf, ssdp_message_s ssdp_message)

const char *	get_header_string (const unsigned int header_type, const ssdp_header_s *header)

BOOL	init_ssdp_message (ssdp_message_s **message_pointer)

BOOL	build_ssdp_message (ssdp_message_s message, char ip, char mac, int message_length, const char raw_message)

void	free_ssdp_message (ssdp_message_s **message_pointer)

Detailed Description

Header file for ssdp_message.c.

Copyright: 2017 Andreas Bank, andre.nosp@m.as.m.nosp@m.ikael.nosp@m..ban.nosp@m.k@gma.nosp@m.il.c.nosp@m.om

Definition in file ssdp_message.h.

Macro Definition Documentation

#define DAEMON_PORT 43210

Port the daemon will listen on.

Definition at line 14 of file ssdp_message.h.

#define DEVICE_INFO_SIZE 16384

Size of the extra device info buffer.

Definition at line 18 of file ssdp_message.h.

#define MULTICAST_TIMEOUT 2

Timeout when waiting for nodes to resond to a SEARCH message.

Definition at line 20 of file ssdp_message.h.

#define XML_BUFFER_SIZE 2048

XML buffer/container string.

Definition at line 16 of file ssdp_message.h.

Typedef Documentation

typedef struct ssdp_custom_field_struct ssdp_custom_field_s

SSDP custom field.

typedef struct ssdp_header_struct ssdp_header_s

The SSDP message header.

typedef struct ssdp_message_struct ssdp_message_s

SSDP message.

Function Documentation

BOOL build_ssdp_message	(	ssdp_message_s *	message,
		char *	ip,
		char *	mac,
		int	message_length,
		const char *	raw_message
	)

Parse a SSDP message.

Parameters

message	The location where the parsed result should be stored.
ip	The IP address of the sender.
mac	The MAC address of the sender.
int	*message_length The message length.
raw_message	The message string to be parsed.

Returns: TRUE on success, FALSE otherwise.

Definition at line 498 of file ssdp_message.c.

int fetch_custom_fields	(	configuration_s *	conf,
		ssdp_message_s *	ssdp_message
	)

Fetches additional info from a UPnP message "Location" header and stores it in the custom_fields in the ssdp_message.

Parameters

conf	The global configuration.
ssdp_message	The message whos "Location" header to use.

Returns: The number of bytes received.

Definition at line 157 of file ssdp_message.c.

void free_ssdp_message ( ssdp_message_s ** message_pointer )

Frees all neccessary allocations in a ssdp_message_s.

Parameters

message The message to free allocations for.

Definition at line 608 of file ssdp_message.c.

ssdp_custom_field_s* get_custom_field	(	const ssdp_message_s *	ssdp_message,
		const char *	custom_field
	)

Searches the SSDP message custom-fields for the given custom-field name

Parameters

ssdp_message	The SSDP message to search in
custom_field	The Custom Field to search for

Returns: Returns the found custom-field or NULL

Definition at line 134 of file ssdp_message.c.

const char* get_header_string	(	const unsigned int	header_type,
		const ssdp_header_s *	header
	)

Returns the appropriate string representation of the header type.

Parameters

header_type The header type (int) to be looked up.

Returns: A string representing the header type.

Definition at line 402 of file ssdp_message.c.

BOOL init_ssdp_message ( ssdp_message_s ** message_pointer )

Initializes (allocates neccessary memory) for a SSDP message.

Parameters

message The message to initialize.

Returns: TRUE on success, FALSE otherwise.

Definition at line 431 of file ssdp_message.c.
